Electromechanical Operator:
For Swing leaf gates , for prestigious architectural solutions and underground installations, Randa (BFT)presents its electromechanical operator. Easy to install with maximum safety . All maintenance operations are particularly simple, fast and intuitive.
-
PHOBOS BT NL KIT.
Hydraulic Operators
For one or two leaf gates for residential, apartments- block and industrial use, also for gates installed in prestigious places, needing under hinge pivot fitting systems, Randa (BFT) Hydraulic operators always offer an answer which is custom made to your requirements. Installations and maintenance are immediate and intuitive, while safety is guaranteed by advanced reliable systems.
-
LUX R 2B KIT
-
P7
-
SUB R

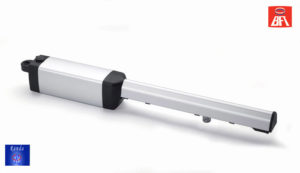

PHOBOS BT NL KIT:
A 24v electromechanical operator for residential use for leaves up to 5 m (250 kg) with magnetic limit switch and anti crush system managed via control panel. Operated by remote and switches. More Information for PHOBOS .
Specifications:
| Operator | PHOBOS BT NL |
| Power Supply | 24 Vdc |
| Absorbed Power | 40 W |
| Max. Leaf Weight | 2500 N (~250 Kg) |
| Leaf Speed | 5 m (with electric lock), 3m (without electric lock) |
| Rod working stroke | 410 mm |
| Rod Speed | 15 mm/sec |
LUX R 2B KIT:
A 230v hydraulic operator with selectable locking feature both opening and closing, for intensive use for leaves up 2 m (300 kg) . Absolute encoder travel limit, anti crash system, slow down during opening and closing and self learning system managed via control panel. Operated by remote or switches. More Info LUX
Specifications:
| Operator | LUX R 2B |
| Power Supply | 230 Vdc |
| Absorbed Power | 250 W |
| Max. Leaf Weight | 3000 N (~300 Kg) |
| Max. Leaf Length | 2 m |
| Rod working stroke | 270 mm |
| Rod Speed | 14 mm/sec |

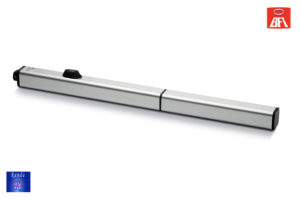

P7:
A 230v irreversible hydraulic operator with very intensive use for leaves up to 7 m (500 kg). Anti crush safety feature consisting of two adjustable bypass valves, slow down during closing. Operated by remote or switches. More information for P7
Specifications:
| Operator | P7 |
| Power Supply | 230 Vdc |
| Absorbed Power | 250 W |
| Max. Leaf Weight | 5000 N (~500 Kg) |
| Max. Leaf Length | 7 m |
| Rod working stroke | 390 mm |
| Rod Speed | 8.3 mm/sec |

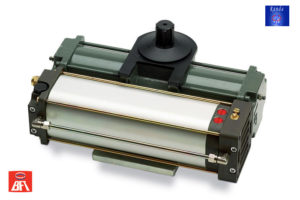

SUB R
A 230v irreversible hydraulic operator with very intensive use for leaves up to 1.8 m (800 kg). Anti crush safety feature consisting of two adjustable bypass valves, slow down during closing. Operated by remote or switches.
Specifications:
| Operator | SUB R | SUB G | SUB EL | SUB ER |
| Power Supply | 230 Vdc | 230 Vdc | 230 Vdc | 230 Vdc |
| Absorbed Power | 250 W | 250 W | 250 W | 250 W |
| Max. Leaf Weight | 8000 N (~800 Kg) | 8000 N (~800 Kg) | 8000 N (~800 Kg) | 8000 N (~800 Kg) |
| Max. Leaf Length | 1.8 m | 1.8 m | 3.5 m | 2.5 m |
| Max opening angle | 130 degree | 180 degree | 130 degree | 130 degree |
| Rotation Speed | 9 degree/sec | 5.4 degree/sec | 3.9 degree/sec | 9 degree/sec |
